CHIPMAX2

$545.00 $495.00

  • Universal Programmer with 48-pin Textool Socket
  • Supports Over 13,000 Programmable Devices
  • B/P/V Takes 85 Sec. For 8 of 64 Mbit Flash Memory
Add to Wishlist
Compare
SKU: 7761015 Category: Programmers
Share
  • Description
  • Additional information
  • Devices & Adapters
  • Specifications
  • Manual
  • Reviews (0)
  • Shipping & Delivery
Description

OVERVIEW

ChipMax2 is a low cost and high-performance universal device programmer for PC USB 2.0/3.0 interface. It programs a 64 Mbit flash memory in 42 seconds. ChipMax2 supports over 13000 programmable devices with low voltage (1.8 V). ChipMax2 is the state-of-art universal programmer offers you the most advanced programming facilities with the most user friendly interface.

KEY FEATURES

SOFTWARE

  • Supports full WINDOW 95/98/2000/NT/XP/7/8 and greater.
  • Auto search device select function supports E(E)PROMs & Microcontrollers.
  • Device insertion test identifies improperly inserted device before programming.
  • Check for incorrect device insertion, backward, incorrect position, and poor pin contact.
  • High-speed device function tests and user creatable test library.
  • Device Operations: Read,Blank check, Program, Verify, Checksum, Data compare, Security, Auto(blank check-program-verify), Option Bit program.
  • Display programming parameters and optional bit information on the screen.
  • Set device/buffer address ranges before programming devices.
  • Extensive on-line F1 help system provides text and graphics.
  • User-changeable programming parameters.
  • Built-in editor for both buffer date and test vectors.
  • Support Binary and all hex files (POF and JEDEC, Intel Hex, Motorola S Records, Tekhex , straight hex, hex-space, Extended Tekhex, and others; automatic file type recognition) with Load,Edit, and Save commands.
  • Distribution of 16- and 32- bit data into 8-bit portions.

HARDWARE

  • One on-board FPGA for extremely fast communication.
  • Supports real low-voltage support : 5, 3.3, 2.7 and 1.8 volt for programming power.
  • Detects all pin locations for poor or damaged pin contacts.
  • External START key allows production programming mode.
  • Internal universal power supply,110-240 VAC (no separate power supply required in foreign country).
  • Current limiting protects hardware circuit from improperly inserted or defective chips and operation errors.
  • Standard 48-pin ZIF(Zero Insertion Force) socket accepts both 300mil and 600 mil DIP devices.
  • True universal pin driver hardware.
  • Support a high-speed USB 2.0/3.0 port for PC interface.
  • Hardware diagnostic program exams all socket-pin drivers before using programmer.
  • Gang Program Mode allows programmers up to 8 units as concurrent programming system. (START ALL key enable to program the programmers simultaneously)



Additional information
Weight5 lbs
Dimensions12 × 10 × 8 in
Devices & Adapters

Devices & Adapters

PROGRAMMING SPEED

Device P/NReadBlankProgVerifyErase
AM29F032B4.704.8056.244.7338.16
AM29LV128ML6.706.6503:26.006.65–
AM29LV256MH17.4116.0004:06.1616.77–
AM29LV641DH4.204.4342.024.44–
AM29LV641DH
(TopMax)
01:40.0001:38.0004:48.5401:42.00–
E28F128J3A9.937.491:557.7501:43.30
E28F128J3C9.937.4902:01.807.7530.31
E28F640J3C4.274.0970.024.1917.5
K8D3216UTC-T2.472.4722.172.51–
MX26L004BQC0.810.8128.240.8131.87
MX29LV641MH–4.8601:10.404.83–
RD38F20403.093.0918.713.0953.47
RD38F405018.8118.0802:55.418.3004:41.8

* Programming Speed With 100% Data in Memory , Times in sec.

DEVICES PROGRAMMED

  • M25Pxx, MX25Lxx, S25LFxx, SST25VFxxx
  • NAND Flash Memory Samsung K9Kxxx, K5Axxx, K5Fxxx, M-System MDOC-256 / 512 G Toshiba TC58xxx St-Micro NAND01G
  • 28Fxxx, 29Fxxx, 38Fxxx, 29LVxxx, 26LVxxx, 29GLxxx, 29ALxxx, 29Wxxx, 36xxx, 32HFxxx, 34VFxxx, 37VFxxx, 39SFxxx, 39VFxxx, 45LFxxx, 49LFxxx, 50FWxxx
  • 27xxx and 27Cxxx series, from 16 Kbit to 32Mbit with 8-bit/16-bit
  • EEPROM 27Exxx, 28xxx , and 28Cxxx series
  • 256 Kbit to 32 Mbit 28Fxxx, 29Fxxx, 29Cxxx, 29BVxxx, 29LVxxx, 29Wxxx, 49Fxxx series (1.8, 2.7, 3.3, 5.0, or 12 Volt)
  • 24Cxx, 24Fxx, 25Cxx, 59Cxx, EPC1/1213/1648, and 93Cxx
  • ispLSI(10/20)xx, ispGAL22V10, ispGDS1(2)x, LC40(41)xx M4Axxx series
  • PALCEs, GALs : 16V8, 20V8, 22V10, 20RA10, 26V12 series
  • DS12xx, DS13xx, DS15xx, DS16xx series
  • PEELs 153, 173, 253, 273, 18CV8, 20CG10 series
  • EPLDs PLCxxx, PLUSxxx, Epxxx, EPCxxx, EPMxxx, PLDxxx, 5Cxxx, 85Cxxx series
  • ATF16/20/22Vxx, ATV750/1500/2500
  • MACH1xx/2xx/4xx, and xxx-SP series
  • MAX5000, MAX7000 series
  • 8741, 8742, 8748, 8749 series
  • 87C51/52, -FA, -FB, -FC, ‘528, ‘652, ‘654, ’54, 89Cxx, 89Sxx, 89LVxx, 89Cxxxx, DCF85xx, 85(87/89)LPCxxx, PXAxx series 87C751/752
  • ST62xx, ST7xx, ST9xx, ST10xx series
  • XC17Sxxx, 17Vxxx, 72xx, 73xx, XCF01 / 02 / 04 series
  • PIC12Cxxx, PIC16xxx, 17xxx, 18xxx series
  • MC68705, MC68HC705, MC68HC711, MC68HC908, MC9S08
  • Z86Cxx, Z86Exx series

DEVICES TESTED

  • TTL type : 54, 74(S, LS, L, H, HC) series
  • CMOS type : 40, 45 series
  • Dynamic Memory : 4164 – 1MBit
  • Static Memory : 6116 – 6256
  • User definable test pattern generation
Specifications

Specifications

DIMENSION

    • 1 circuit board with heavy duty case
    • Module : 9.5″(L) x 7.0″(W) x 1.5″(H)
    • Weight : 1.75 lbs
    • Built-in Socket : Textool 48 pin ZIF

SYSTEM REQUIREMENT

  • TYPE: 386, 486, Pentium or compatibles. PS/2, Portable(notebook) computer.
  • A hard disk drive (4 Megabytes) is recommended for software installation / set up.
  • PC RAM size: 512K of conventional memory
  • I/O PORT: USB 1.1/2.0/3.0 port
  • OS: WINDOWS 95 / 98 / 2000 / NT / XP or greater

STANDARD ACCESSORIES

  • AC/DC Adapter(100 to 240 VAC)
  • USB Cable
  • Software CD and User’s Guide

SAFETY STANDARD

  • CE compliant
Manual

Manual

MAXLOADER-2011

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “CHIPMAX2” Cancel reply

You must be logged in to post a review.

Shipping & Delivery

Related products

New
Compare
Close

PROMAX ll 4G

Rated 0 out of 5
$2,950.00
  • Concurrent Universal Device Programmer
  • Extremely fast SPI, QPI Serial memory support
  • MX25L12835FM(SPI), P:41.8 V:6.2
  • MX25L12835FM(QPI), P:37.6 V:2.1
Add to cart
Quick view
New
Compare
Close

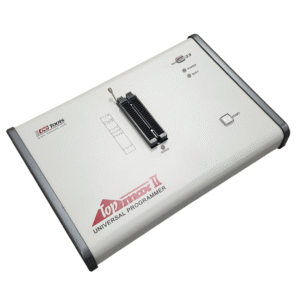

TOPMAX III
