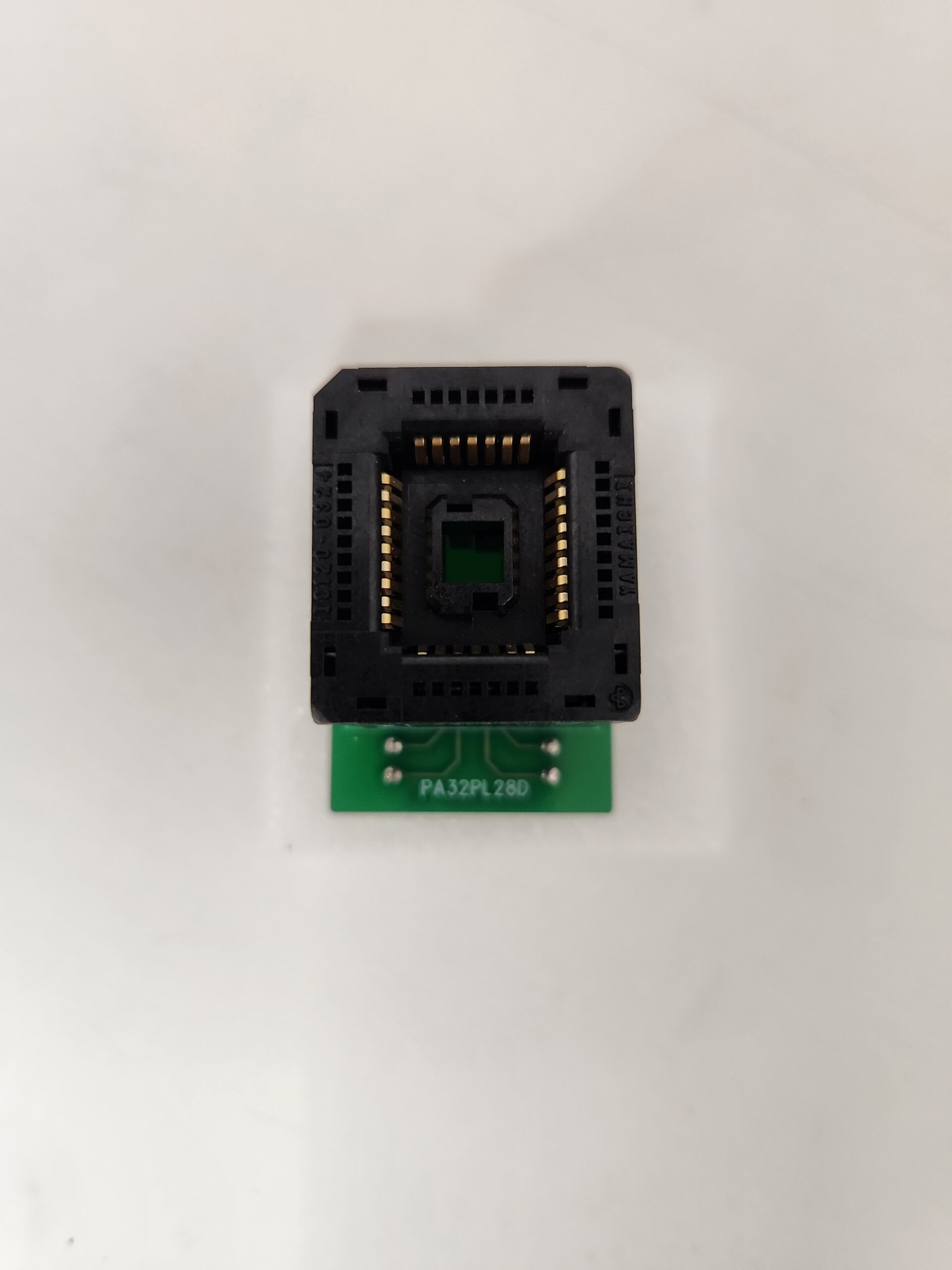

PA32PL28D-YA

The PA32PL28D-YA socket adapter accepts with the device family below :
Several 27C64, 27C128 Several 27C256, 27C512
The following chart shows the connections from the PLCC socket to the adapter’s DIP plug.
4 3 2
5
1 32
E.E. Tools, Inc.
881 Yosemite Way Milpitas, CA 95035, USA
Tel: (408) 263-2221 Fax: (408)263-2230
Web : www.eetools.com Email : info@eetools.com
Date 06/07/19 Page 1 of 1
Rev 1.0
PLCC32
DIP28
2
1
3
2
4
3
5
4
6
5
7
6
8
7
9
8
10
9
11
10
13
11
14
12
15
13
16
14
18
15
19
16
20
17
21
18
22
19
23
20
24
21
25
22
27
23
28
24
29
25
30
26
31
27
32
28
